• 動力鋰電池

    動力鋰電池

    地質勘探、環境監測、交通出行、植保無人機鋰電池、自平衡車鋰電池、電動自行車、電動摩托車鋰電池

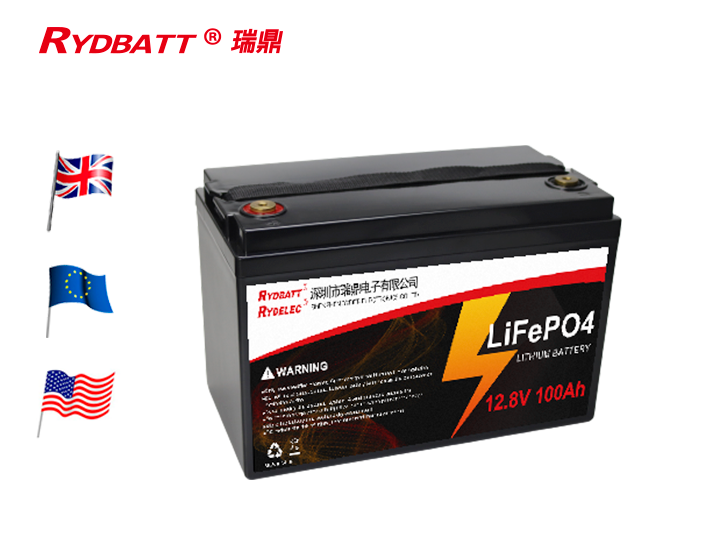

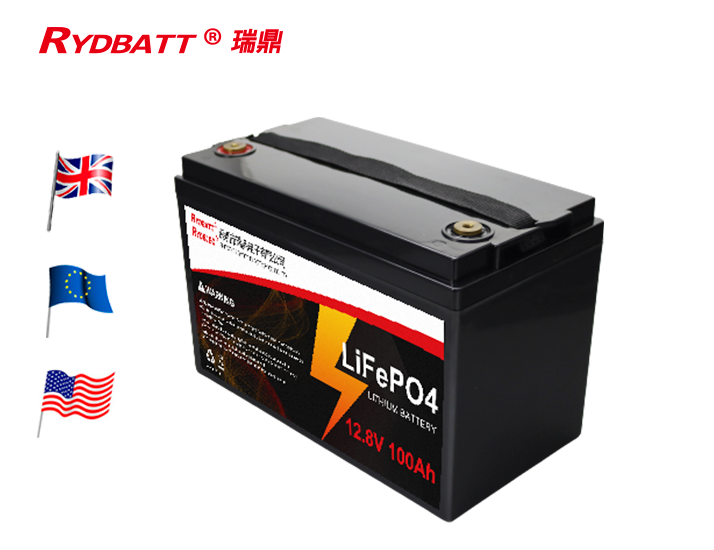

    12.8V100Ah 4串17并 18650動力鋰電池組

    型號編碼:YA004F041700
    標稱電壓:12.8v
    標稱容量:100Ah
    出廠電壓:13.2±0.15V
    執行標準:
    工作溫度: -20~60℃(充電),10~45℃(放電)
    產品規格:L 328 * W 172* H 220 mm
    產品重量:13.5Kg
    開發定制:OEM
    產品描述:Product Specification 產品規格 No. 內容 content 測試方法 Testing method 備注 Remark 1 充電截止電壓Charge cut-off voltage 3.72-3.78V 2 放電終止電壓Discharge cut-off voltage 2.65-2.75V 3 標準充電模式 Standardchar

    ??在線下單

    Product Specification 產品規格


    No.

    內容
    content

    測試方法
    Testing method

    備注
    Remark


    1

    充電截止電壓Charge cut-off voltage

     3.72-3.78V




    2

    放電終止電壓Discharge cut-off voltage

     2.65-2.75V



    3

    標準充電模式
    Standard charge

    在環境溫度25±2℃條件下,以0.2C電流恒流充電至29.4V,轉29.4V恒壓充電,直到充電電流≤0.02C。Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge the battery at constant current of 0.2C to reach 29.4V. Then charge the battery at constant 29.4V voltage until the charging current decreasing to 0.02C.



    4

    FET 放電高溫保
    護(內置)FET discharge
    high temperature
    protection Guard (built-
    in)
    溫度保護值 Temperature protection value:80-90℃
    溫度保護釋放值 Temperature protection release value:60-70℃





    5

    出貨電壓
    Shipments voltage

     13.2±0.15V



    6

    最大充電電流
    Maximum Charge Current


    ≤13.8V



    7

    最大持續工作電流Maximum continuous working current



    ≤100A



    8

    容量
    Rated capacity


    標稱容量Typical capacity:10200mAh
    最小容量Minimum capacity:10050mAh-5%

    標準充電然后標準 放 電 standard discharge after standard charge

    9

    工作溫度Operation temperature range

    充電:10~45℃


    濕度:60±25% 60±25%R.H

    放電:-20~60℃

    10

    儲存溫度Storage temperature

    小于 1 個月:-20 ~ 45℃

    ≤1 month: -20 ~ 45℃


    濕度:60±25%
    長時間儲存最佳溫 度 :10~25℃ 60±25%R.H
    Best 10~25℃ for long-time storage

    小于 3 個月:-10 ~ 30℃
    ≤3 months: -10 ~ 30℃

    小于 1 年:0 ~ 30℃
    ≤1 year: 0 ~ 30℃

    11

    內阻
    Impedance

    ≤120mΩ



    12

    重量
    Weight

    Approx:13.5Kg
